When the Key Is Gone, Pull the Plug and Open the Door

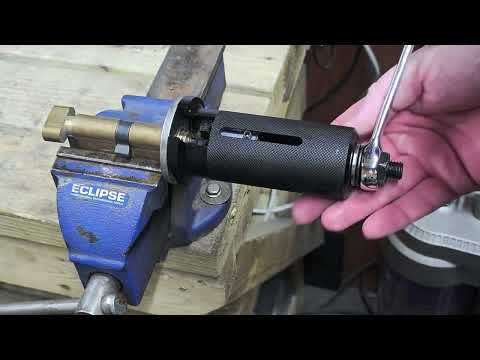

A bell plug puller is the dent-puller of the locksmith trade. You anchor the bell over the face of the lock, bite a screw into the plug, then wind the puller down so it draws the plug straight out. The core comes away, you turn the cam, and the door opens. This Lokko Complete Set puts the bell, two protection plates, thirty self-tapping screws in three gauges, and the cam turner in one case, so you can run a controlled pull instead of an uncontrolled drilling session.
What a bell plug puller actually does
Picking and decoding come first when they make sense. Some jobs do not stay there: a seized mechanism, a damaged keyway, a failed rim or mortise cylinder, a stubborn Euro profile cylinder, or simply no usable key and a customer who needs the door open now. A bell plug puller changes the problem. Rather than chewing up the whole area around the lock, you anchor over the cylinder face and apply the pull through the plug itself. The plug draws forward, clears the housing, and the failed core comes out. The cylinder is sacrificed by design, so it becomes the replacement part once you are through.

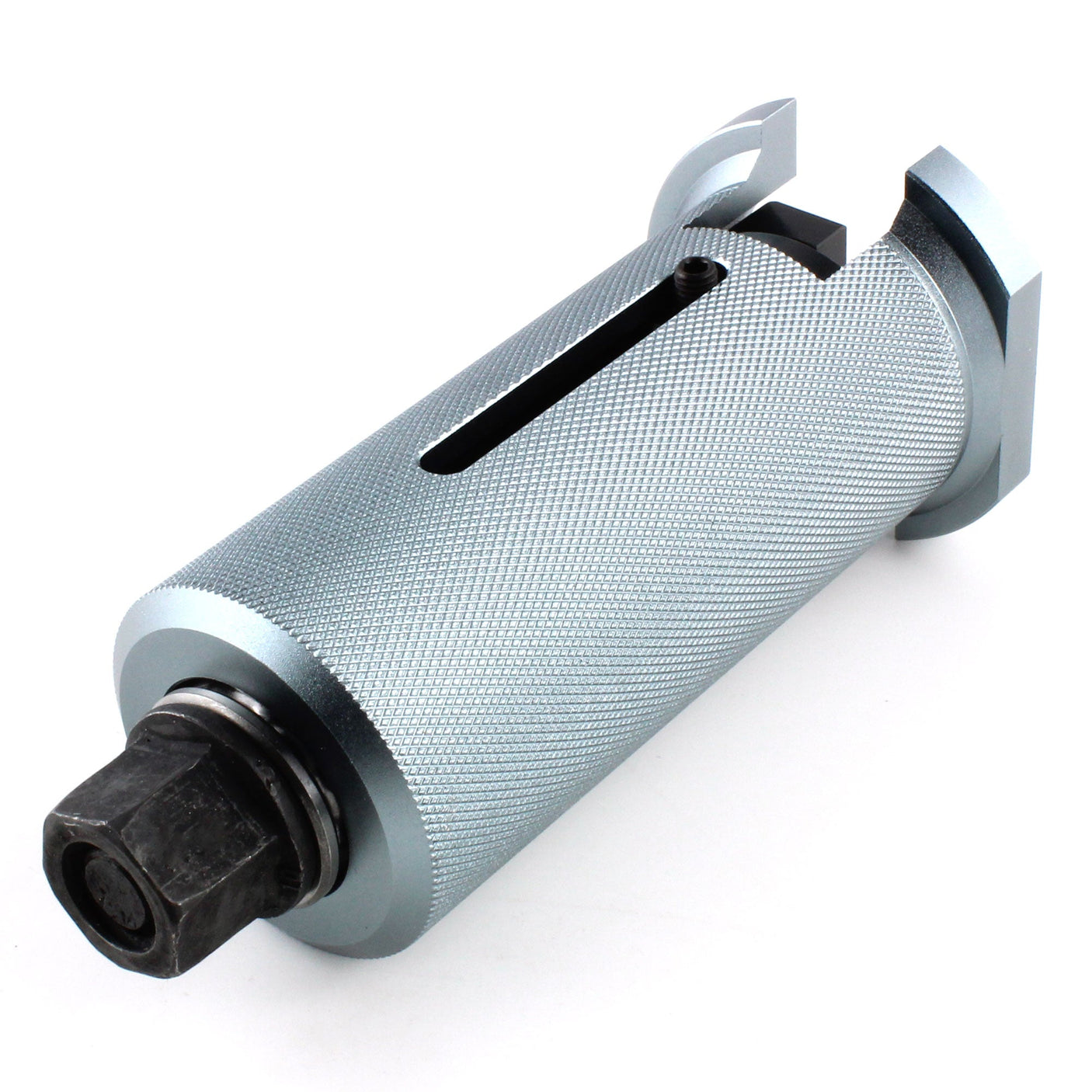

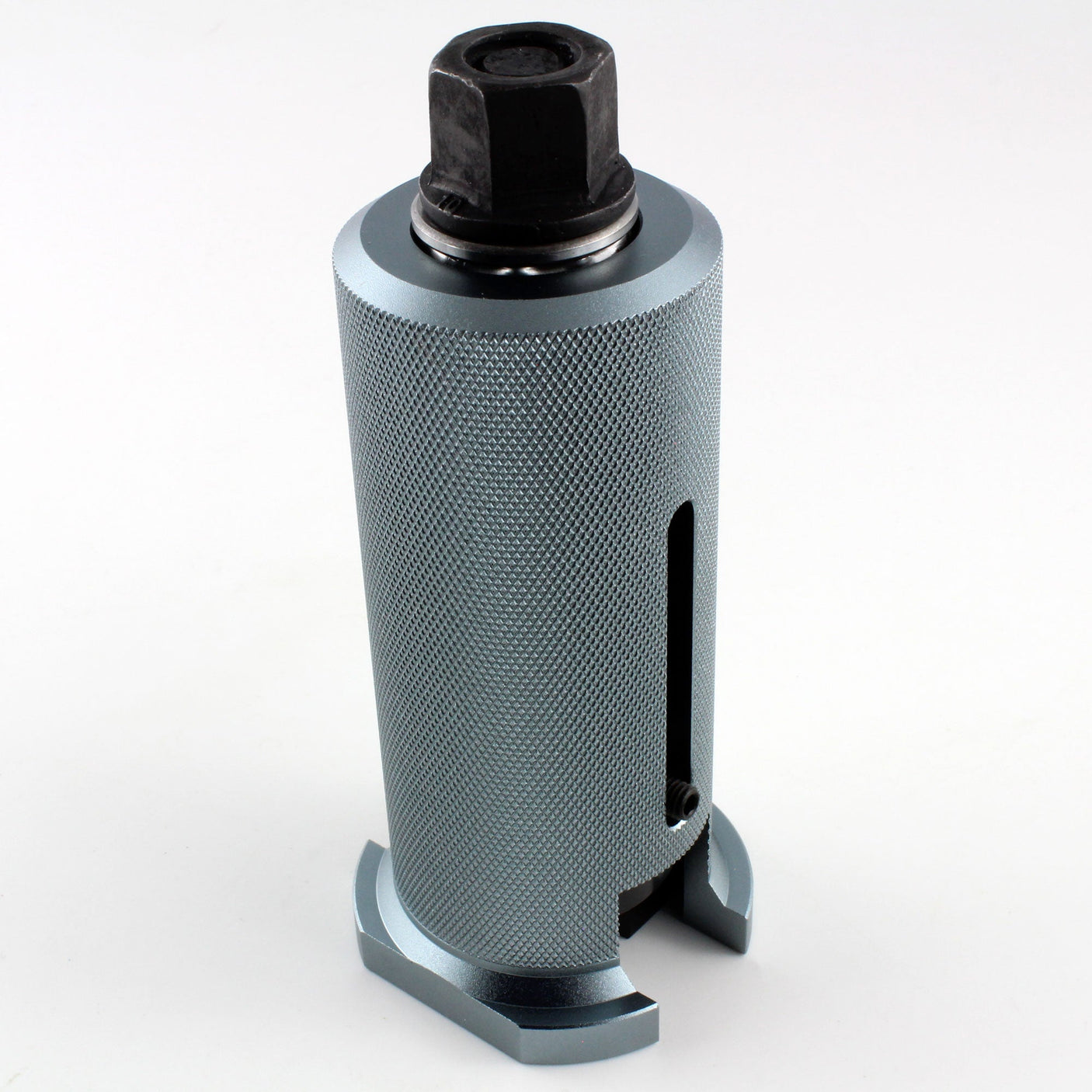

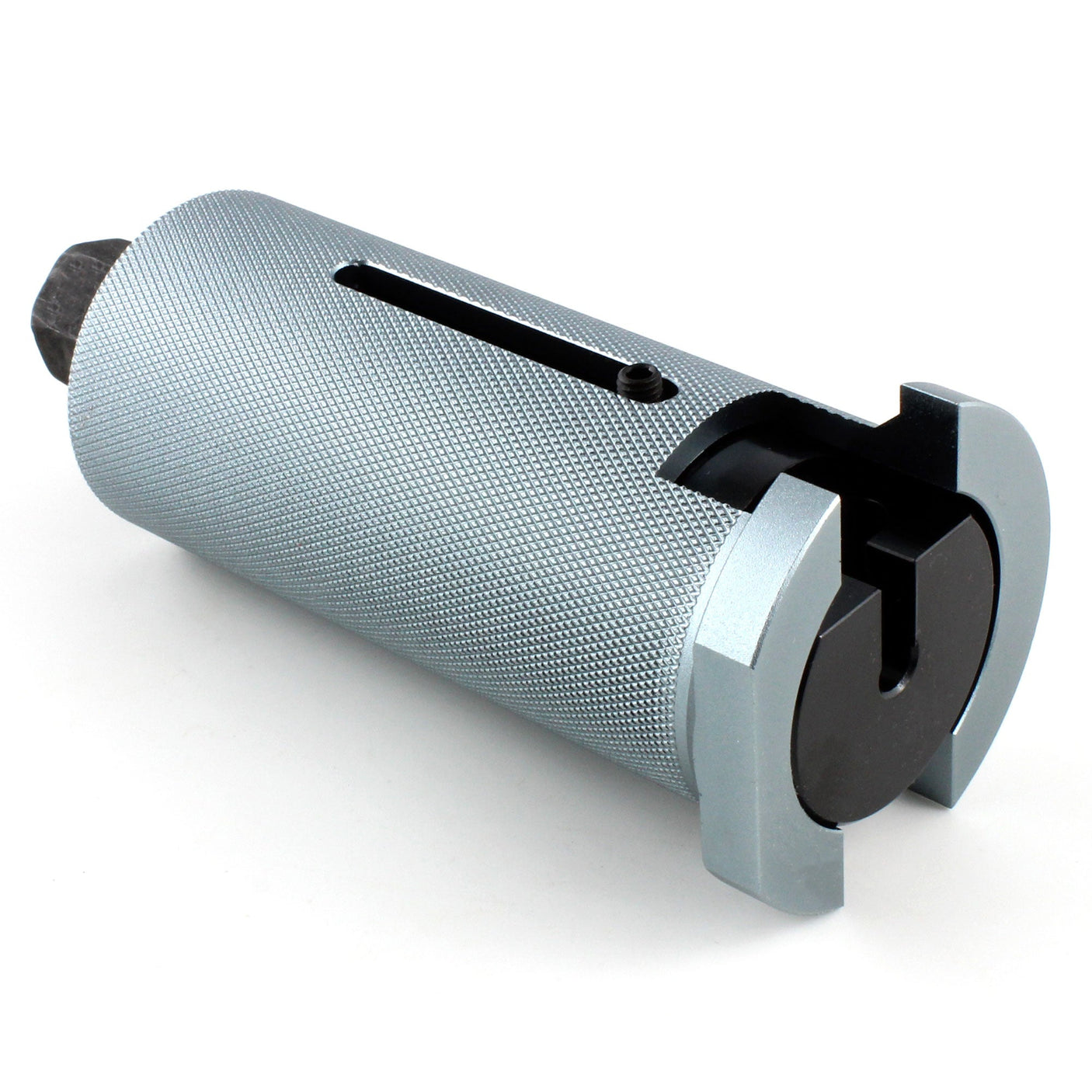

Anchor over the face
The bell body sits across the lock face and keeps the pull centered and focused instead of skidding into the door.
Bite, then pull
A self-tapping screw cuts its own thread into the plug, then the puller winds down and draws the plug straight out.
Turn and open
With the core gone, the cam turner works the mechanism so the door opens and you move into a fresh cylinder.
Four steps from stuck lock to open door
Set the bell

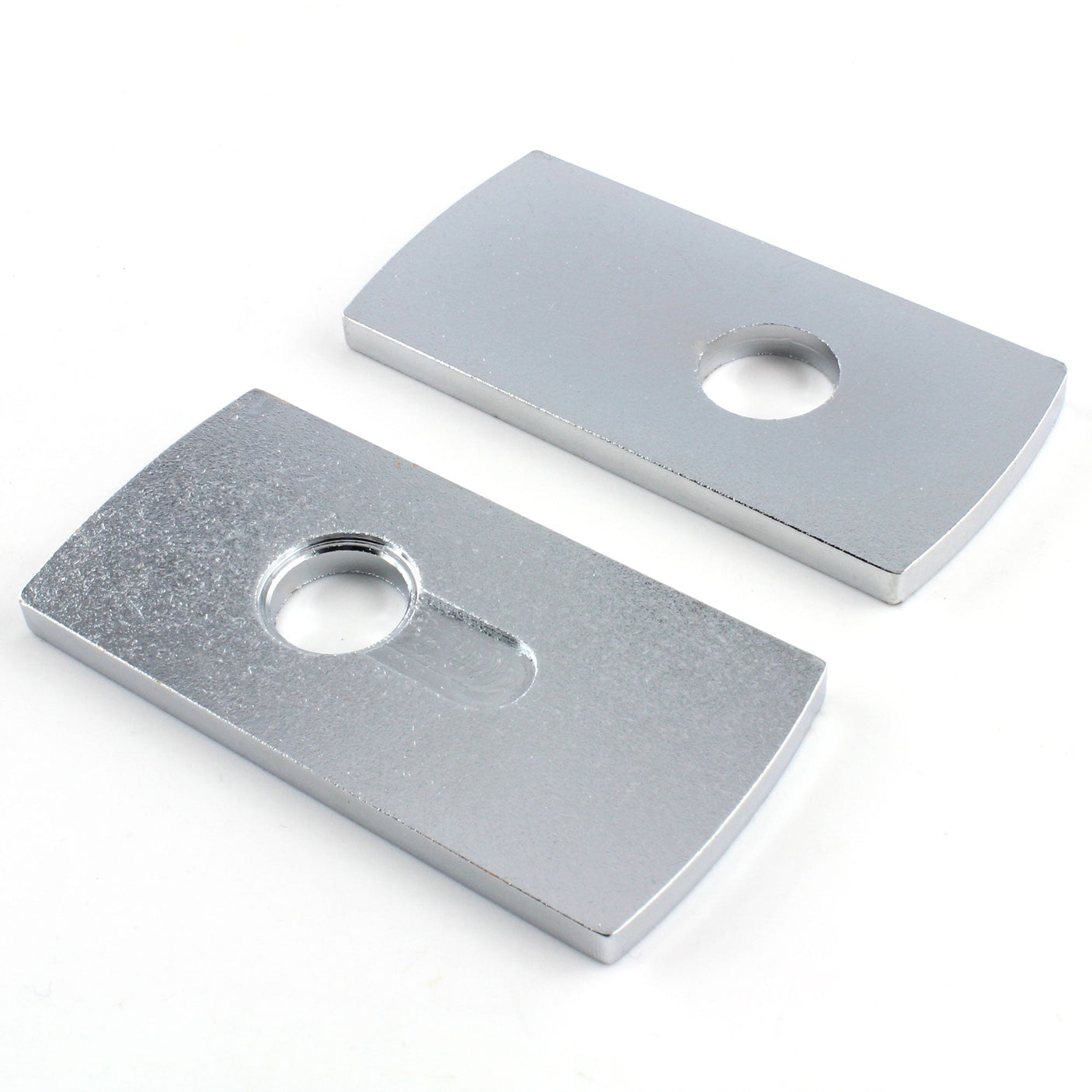

Seat the bell puller over the cylinder face. The two protection plates spread load across the door.
Bite the plug
Drive the right self-tapping screw into the plug or keyway. Start mid-gauge and step up if the bite feels loose.
Wind and pull
Tighten the puller down. The thread holds while the plug draws forward and clears the housing.

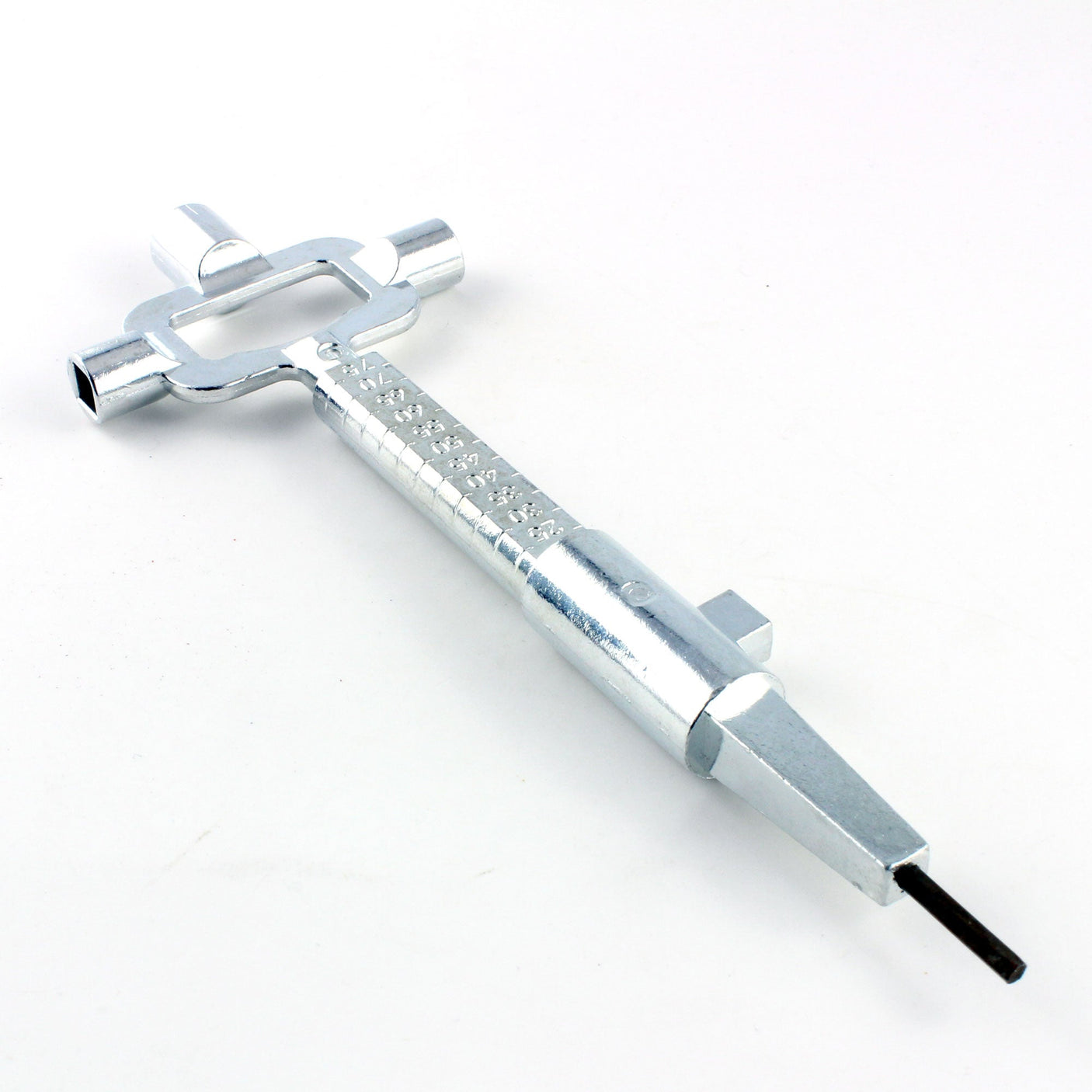

Turn the cam
With the core out, work the cam turner to throw the mechanism, open the door, and fit a new cylinder.

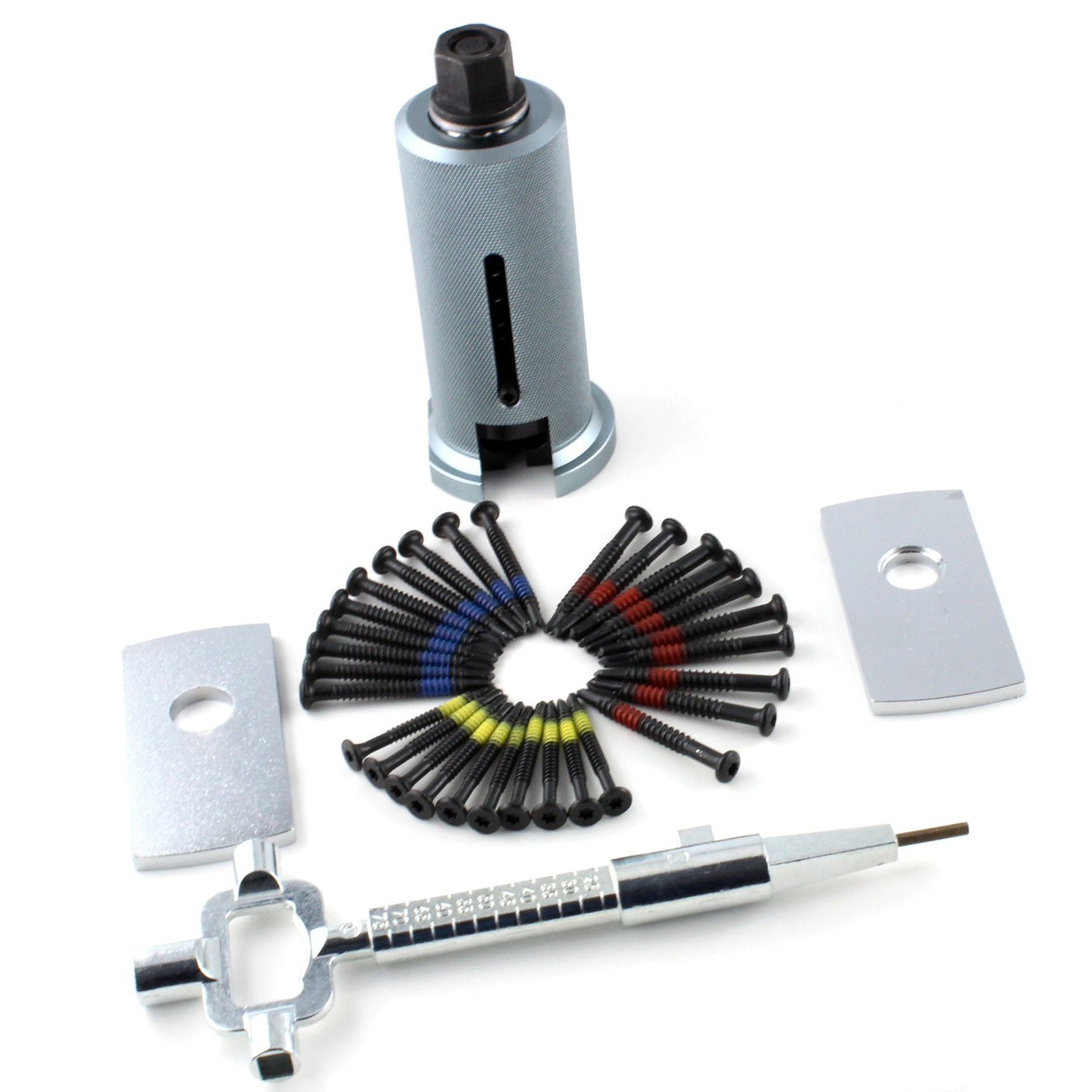

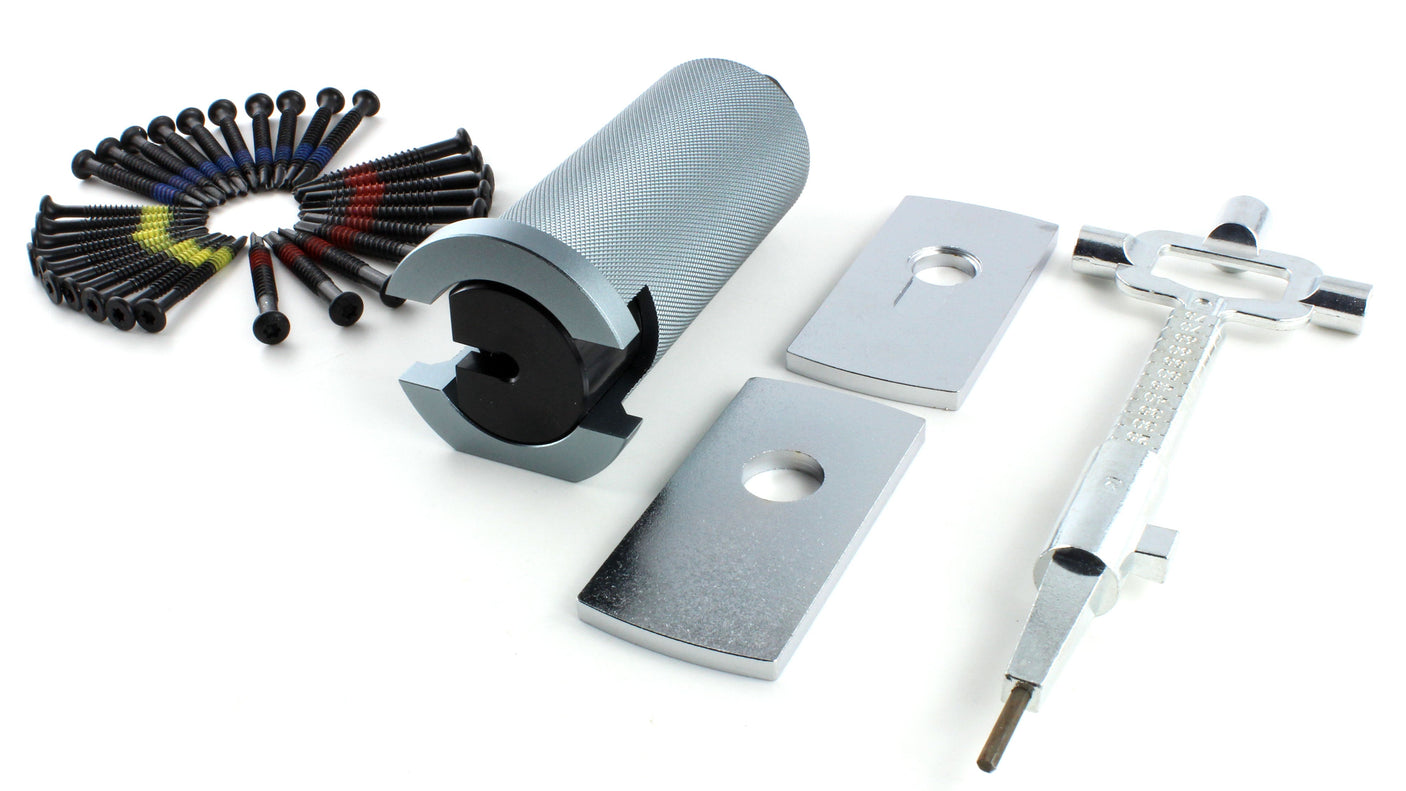

Everything the pull needs, in one case
The set is built so the working parts are already with you on the callout. The bell body does the pulling, the two protection plates guard the door face, the screws are the bite point, and the cam turner finishes the opening once the core is out.

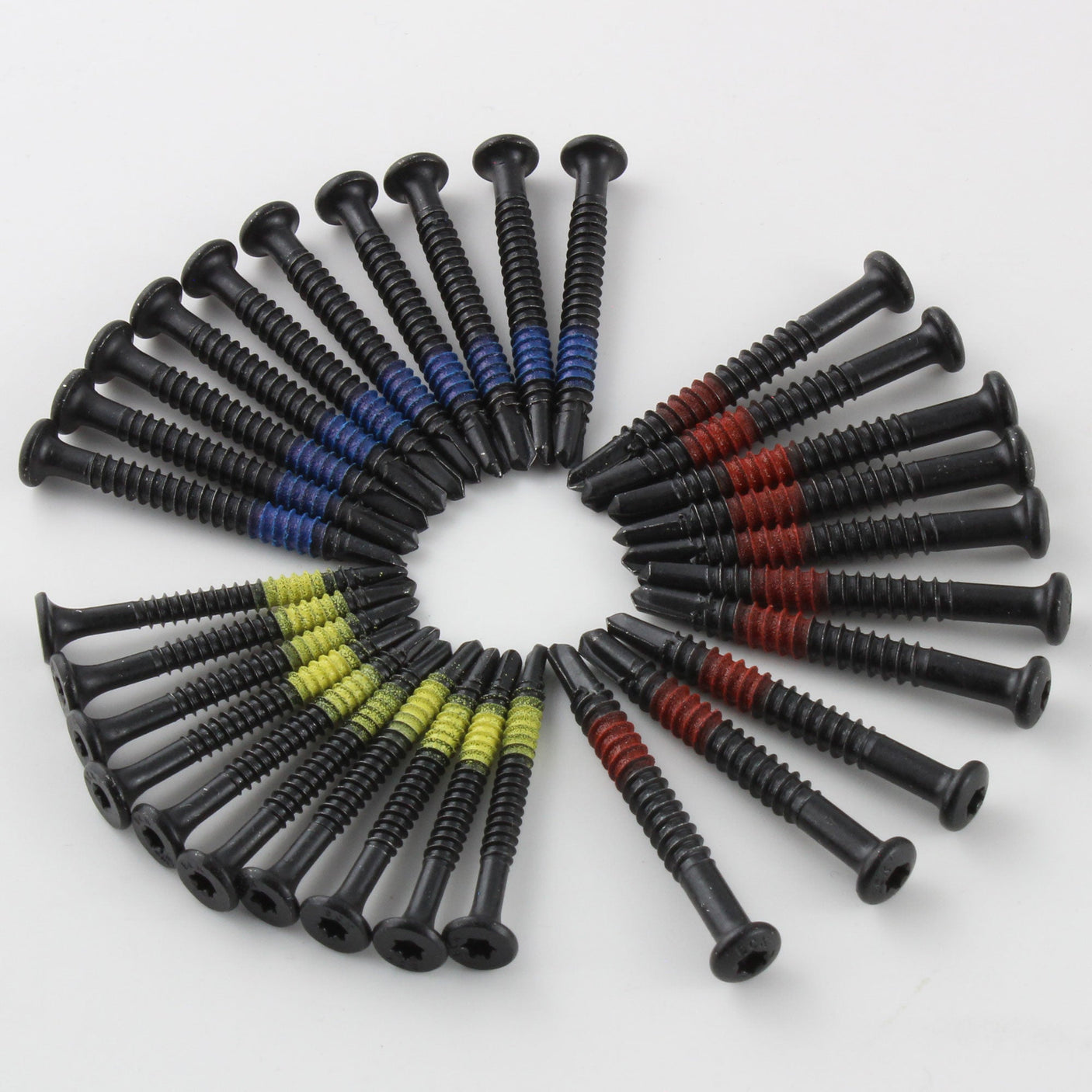

Three screw gauges, thirty screws, all consumable
The pulling screws are not decoration. They are the part that grabs the lock, so they wear and get used up the more openings you run. This set ships with ten each of the 0.165 in / 4.2 mm, 0.189 in / 4.8 mm, and 0.217 in / 5.5 mm gauges. Match the gauge to the plug in front of you and step up a size when you want a heavier bite.
Treat them like any other consumable and keep refills ready before the bag runs thin. When you need more, the Lokko Self-Tapping Screws for the Bell Plug Puller restock the same three colour-coded sizes so the puller stays fed.
The puller is the tool, the screws are the fuel
A bell puller only works when a fresh screw gets a firm, lasting bite in the plug. Worn or stripped screws slip under load, so the screws are the part that runs down with use. Stash a pack of the Lokko pull-screw refills in the kit roll and you are ready for the next plug that needs to come out.
The cylinders a bell pull suits best
This earns its keep on the trade side of the kit: controlled emergency access when saving the cylinder is no longer the priority. It suits compatible exposed or flush rim, mortise, profile, round, and oval cylinder work, where the plug or cylinder face is accessible for a centered pull. It is not a universal answer for every recessed, guarded, interchangeable-core, or unusual lockset, so read the lock before you commit to the pull.
Mobile locksmith callouts
For locks that are failed, seized, damaged, or no longer worth fighting with non-destructive methods.
Rim, mortise, and Euro
For compatible American rim and mortise cylinders plus Euro profile cylinders, where a clean pull beats chewing up the door.
Emergency access kits
For authorized responders and trade users who want a compact entry option with screws and plates already packed.

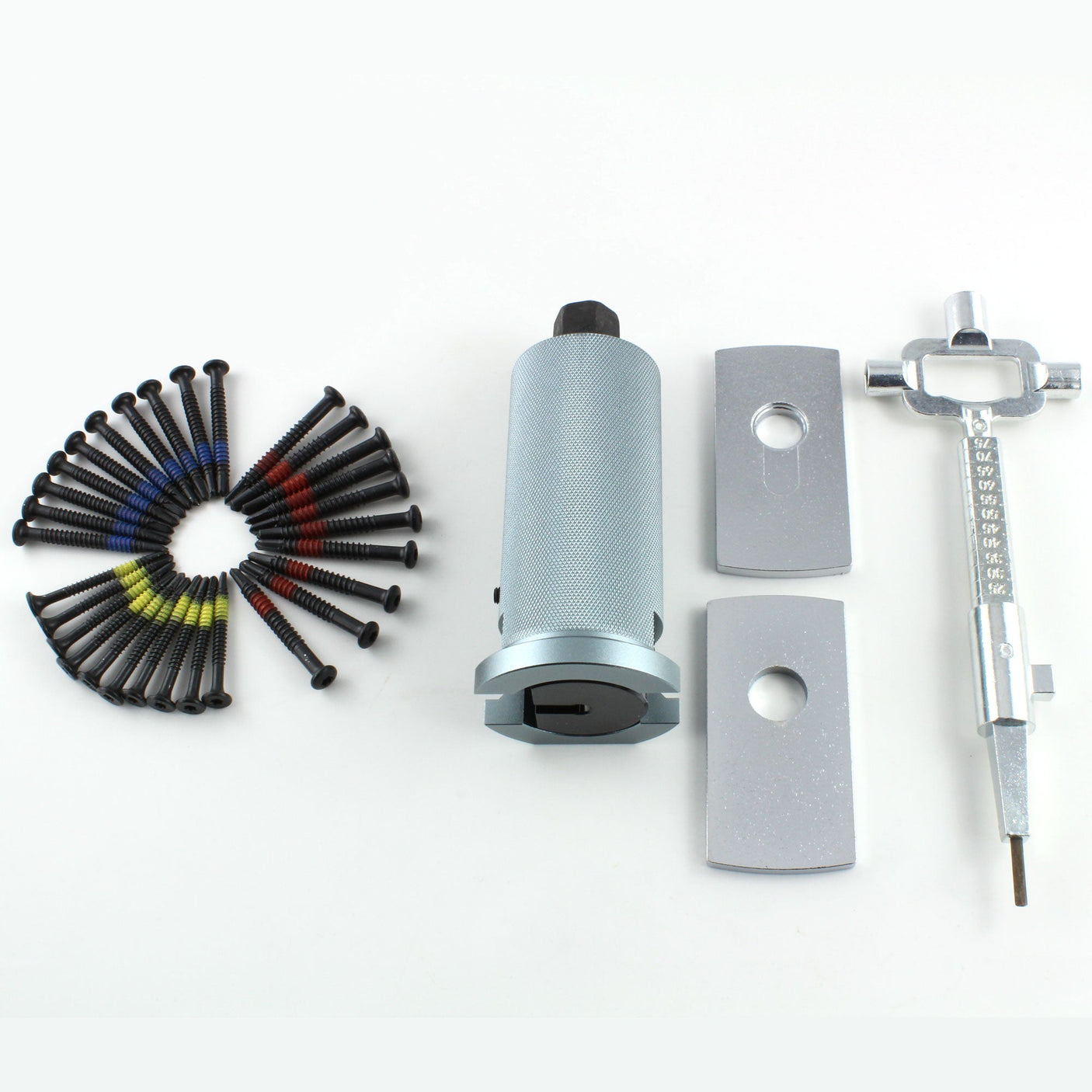

Full specs and kit contents
| Brand | Lokko |
| Product type | Emergency-access lock plug puller and cylinder puller kit |
| Kit contents | 1 bell plug puller, 2 protection plates, 30 self-tapping screws, 1 cam turner |
| Screw gauges | 10 x 0.165 in / 4.2 mm, 10 x 0.189 in / 4.8 mm, 10 x 0.217 in / 5.5 mm |
| Typical cylinder fit | Compatible exposed or flush rim, mortise, profile, round, and oval cylinder work. Not universal for every recessed, guarded, interchangeable-core, or unusual lockset. |
| Puller dimensions | 5.1 x 2.2 x 2.2 in / 130 x 55 x 55 mm |
| Cam turner dimensions | 7.7 x 2.6 x 0.8 in / 195 x 65 x 20 mm |
| Protection plate dimensions | 3.3 x 1.7 x 0.2 in / 85 x 43 x 5 mm |
| Listed component weights | Puller 1.30 lb / 590 g, cam turner 5.29 oz / 150 g, protection plate 4.06 oz / 115 g, screws 0.12 oz / 3.4 g, 0.19 oz / 5.3 g, and 0.23 oz / 6.4 g |
| Shipping weight | 2.58 lb / 1170 g |
Questions buyers usually ask
What is a bell plug puller for?
It is for emergency access and lock removal when picking or decoding is not the route. You anchor the bell over the lock face, bite a screw into the plug, wind the puller to draw the plug out, then turn the cam to open the door. The cylinder is treated as a replacement part after the pull.
Will it work on American cylinder locks?
Yes, when the cylinder suits this pulling method. Bell pullers are used on compatible round and profile cylinders, including many US-style rim and mortise jobs. It is not a universal answer for every recessed, shielded, interchangeable-core, or unusual residential lockset, so check the lock first.
Does the kit include pulling screws?
Yes. The set includes 30 self-tapping screws: 10 each of 0.165 in / 4.2 mm, 0.189 in / 4.8 mm, and 0.217 in / 5.5 mm. Pick the gauge that suits the plug in front of you.
Will I run out of screws?
The screws are consumables and wear with use, which is why thirty come in the set. When the bag runs thin, the Lokko pull-screw refills restock the same three sizes.
Do I need anything else on the job?
Bring your usual driver setup and bits, hand tools, a replacement cylinder, and the wrench you prefer for the puller. This set covers the bell puller, two protection plates, the screws, and the cam turner.
Will it avoid all door damage?
No tool can promise that, but the two protection plates and the bell body are there to control the force and keep the work cleaner than uncontrolled drilling or prying.
Open the door, then fit the new cylinder
The Lokko Lock Plug Puller Complete Set is the compact bell setup for controlled emergency access: the puller body, two protection plates, thirty screws in three gauges, and the cam turner to finish the opening. Built for anyone who handles failed rim, mortise, and Euro profile cylinders for a living.
